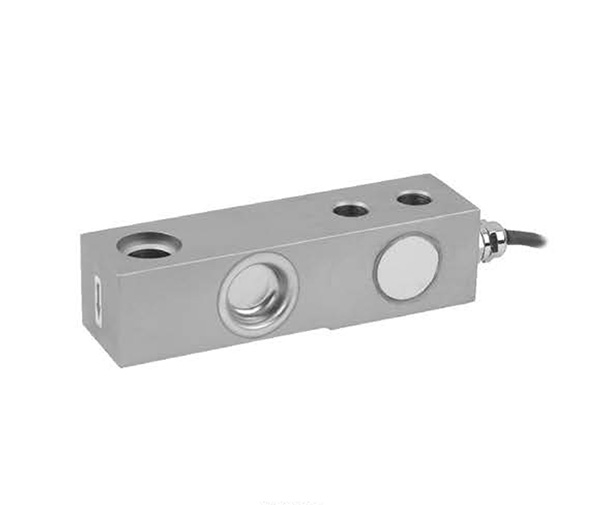

美國傳力 - 單懸臂梁傳感器
首頁 - 產品中心 - 美國傳力
| 量程 | A | B | C | D | E | F | G | H | J | K | M | N |
| 0.25t~1t ( mm) | 30.7 | 17 | 133.4 | 76.2 | 16.4 | 25.4 | 4.8 | 30 | 57.9 | 12.7 | 22 | 15.9 |
| 2 t (mm) | 36.8 | 23 | 136.7 | 76.2 | 16.7 | 25.4 | 9.5 | 36.6 | 57.9 | 12.7 | 22 | 15.9 |
| 3t (mm) | 39 | 23 | 139.7 | 79.2 | 16.7 | 25.4 | 9.5 | 36.6 | 57.9 | 15 | 22 | 15.9 |
| 5t (mm) | 42.9 | 29.4 | 171.5 | 95.2 | 16.7 | 38.1 | 11 | 43 | 73.8 | 19 | 34.9 | 22.2 |
| 10t~13.5t (mm) | 60.4 | 20.4 | 279.4 | 139.7 | 25.4 | 82.6 | 8.6 | 66.7 | 133.4 | 27 | 47.6 | 31.8 |
| 額定輸出 | 2.0mV/V±0.1% | 可用溫度范圍 | -10℃to+70℃ |
| 零點平衡 | ±1%of rated output | 溫度補償范園 | -10℃to+40℃ |
| 蠕變 | ±0.03%of rated output | 安全載荷 | 150% |
| 非線性 | ±0.03%of rated output | 輸入阻抗 | 387ohm±20ohm |
| 滯后 | ±0.03%of rated output | 輸出阻抗 | 350ohm±5ohm |
| 重復性 | ±0.03%of rated output | 絕緣阻抗 | ≥5000M ohm(50V DC) |
| 靈敏度溫漂 | ≤0.002% of applide output /℃ | 推薦激勵電壓 | 10V DC/AC |
| 零點溫度 | ≤0.002% of rated output /℃ | 激勵電壓 | 15V DC/AC |
| 導線長度 | 6m(0.25t~5t)/9.5m(10t~13.5t) | 導線顏色 | Red(+E)Black(-E)White(-S)Green(+S) |
