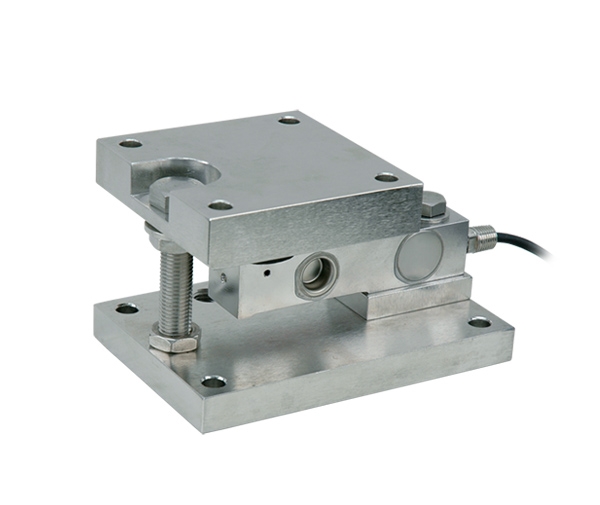

美國傳力 - 模塊
首頁 - 產(chǎn)品中心 - 美國傳力
| 量程 | A | B | C | D | E | F | G | H | J |
| 0.5t~3t ( mm) | 114.3 | 177.8 | 104.8 | 152.4 | 88.9 | 11 | 12.7 | 25.4 | 19 |
| 5t(mm) | 152.4 | 235 | 136.5 | 184.2 | 101.6 | 17.5 | 25.4 | 31.8 | 25.4 |
| 10t/13.5t(mm) | 203.2 | 255.6 | 190.5 | 304.8 | 152.4 | 20.6 | 25.4 | 44.5 | 44.5 |
| 20t(mm) | 228.6 | 406.4 | 228.6 | 342.9 | 165.1 | 28.5 | 31.8 | 50.8 | 50.8 |
| 額定輸出 | 2.0mV/V±0.1% | 可用溫度范圍 | -10℃to+70℃ |
| 零點平衡 | ±1%of rated output | 溫度補償范圍 | -10℃to+40℃ |
| 蠕變 | ±0.03%of rated output | 安全載荷 | 150% |
| 非線性 | ±0.03%of rated output | 輸入阻抗 | 387ohm±20 ohm |
| 滯后 | ±0.03%of rated output | 輸出阻抗 | 350ohm±5 ohm |
| 重復(fù)性 | ±0.03%of rated output | 絕緣阻抗 | ≥5000M ohm(50V DC) |
| 靈敏度溫漂 | ≤0.002%of applied output/℃ | 推薦激勵電壓 | 10V DC/AC |
| 零點溫度 | ≤0.002%of rated output/℃ | 激勵電壓 | 15V DC/AC |
| 導(dǎo)線長度 | 6m(0.25t~5t)/9.5m(10t~13t)/13m(20t) | 導(dǎo)線顏色 | RED(+E)Black(-E)White(-S)Green(+S) |
